IVO 4inch C039SWN1-3 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

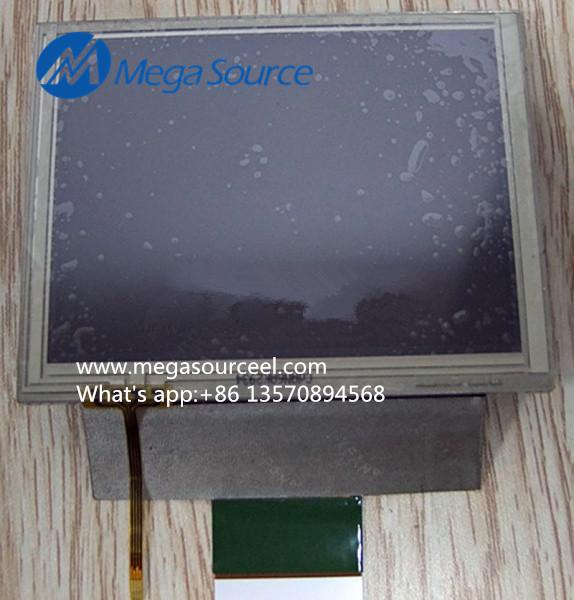

IVO 4inch C039SWN1-3 LCD Panel

Place of Origin : Japan

Brand Name : OMRON

Certification : RoHS Compliant

Model Number : C039SWN1-3

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : C039SWN1-3

Panel Brand : IVO

Descrition : a-Si TFT-LCD ,4.0 inch, 320×480

Panel Type : a-Si TFT-LCD

Contact Now

IVO 4inch C039SWN1-3 LCD Panel

Specification for C039SWN1-3:

Panel Model

C039SWN1-3

Panel Brand

IVO

Descrition

a-Si TFT-LCD ,4.0 inch, 320×480

Panel Type

a-Si TFT-LCD

Display Mode

TN, Normally White, Transmissive

Active Area

55.68×83.52 mm

Outline

58.68×90.32 mm

Surface

Without Polarizer

Contrast Ratio

500:1 (Typ.)

Display Colors

, CIE1931 60%

Response Time

30 (Typ.)(Tr/Td)

Viewing Angle

70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)

Frequency

60Hz

Driver IC

Suggest HX8357-B, HX8357-C, ILI9486
