KOE 12.1inch LMG9980ZWCC-02 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

KOE 12.1inch LMG9980ZWCC-02 LCD Panel

Place of Origin : Japan

Brand Name : KOE

Certification : RoHS Compliant

Model Number : LMG9980ZWCC-02

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : LMG9980ZWCC-02

Panel Brand : KOE

Descrition : CSTN-LCD ,12.1 inch, 800×600

Panel Type : CSTN-LCD

Contact Now

KOE 12.1inch LMG9980ZWCC-02 LCD Panel

Specification for LMG9980ZWCC-02:

Panel Model

LMG9980ZWCC-02

Panel Brand

HITACHI

Descrition

CSTN-LCD ,12.1 inch, 800×600

Panel Type

CSTN-LCD

Display Mode

STN, Normally Black

Active Area

246×184.5 mm

Outline

275×202.5 mm

Surface

Antiglare, Hard coating (3H)

Contrast Ratio

30 : 1 (Typ.)

Display Colors

Color

Response Time

170/130 (Typ.)(Tr/Td)

Viewing Angle

40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)

Frequency

120Hz

Lamp Type

1 pcs CCFL Without Driver

Signal Interface

Parallel Data (8-bit) , 41 pins

Input Voltage

3.3/5.0V (Typ.)(VDD)

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LTM170EX-L21

SAMSUNG

17.0"

1280×1024

LTM170EX-L31

SAMSUNG

17.0"

1280×1024

LTM170ET01

SAMSUNG

17.0"

1280×1024

LTM190M2-L31

SAMSUNG

19.0"

1440×900

LTM190EX-L31

SAMSUNG

19.0"

1280×1024

LTM190ET01

SAMSUNG

19.0"

1280×1024

LTM190E4-L21

SAMSUNG

19.0"

1280×1024

LTM190EP03

SAMSUNG

19.0"

1280×1024

LTM220MT12

SAMSUNG

22.0"

1680×1050

LTM240CS05

SAMSUNG

24.0"

1920×1200

LTM240CS06

SAMSUNG

24.0"

1920×1200

LQ150X1LW93

SHARP

15.0"

1024×768

NL160120BM27-08A

NLT

21.3"

1600×1200

LQ185T1LGN2

SHARP

18.5"

1366×768

TMS150TDS50

TIANMA

15.0"

1024×768

AA150XS03

Mitsubishi

15.0"

1024×768

G156XW01 V1

AUO

15.6"

1366×768

G156XW01 V3

AUO

15.6"

1366×768

M170EG01 VD

AUO

17.0"

1280×1024

M170ETN01.0

AUO

17.0"

1280×1024

M201UN02 V5

AUO

20.1"

1600×1200

M240UW01 V0

AUO

24.0"

1920×1200

M104GNX1 R2

IVO

10.4"

1024×768

NL8060BC31-27D

NLT

12.1"

800×600

NL160120BC27-14

NLT

21.3"

1600×1200

LB040Q02-TD02

LG Display

4.0"

320×240

LB040Q04-TD01

LG Display

4.0"

480×272

LA061WQ1-TD05

LG Display

6.1"

720×272

LA060N01-SD01

LG Display

6.0"

240×257

LB048Q01-TD01

LG Display

4.8"

400×240

TM084SDHG02

TIANMA

8.4"

800×600

PA050XSG

E Ink

5.0"

320×234

LS013B7DH03

SHARP

1.28"

128×128

LQ150X1LW96

SHARP

15.0"

1024×768

NL204153AC21-09

NLT

21.3"

2048×1536

Product Tags:

general purpose relays



High sensitive delay


Quality KOE 12.1inch LMG9980ZWCC-02 LCD Panel wholesale

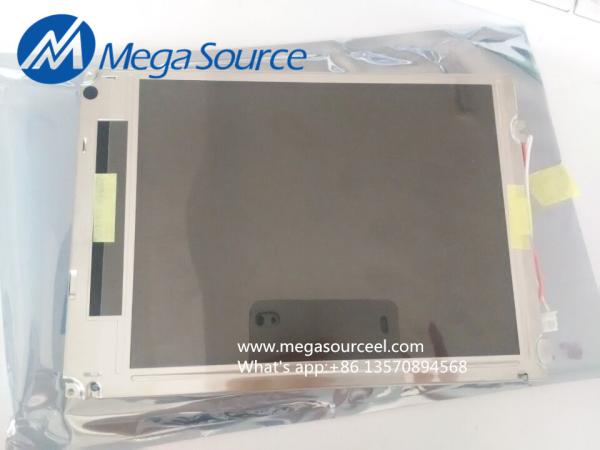

KOE 12.1inch LMG9980ZWCC-02 LCD Panel Images
